Today I will introduce a tiny UAV that is easy to build and fun to fly.

Model Information​

TThe Tiny Wing is a 3D-printable UAV with a 380 mm wingspan and a single pusher motor. Its name highlights the small form factor and lightweight design — just 100 g all up weight (AUW). The aerodynamics have been optimized for efficiency and agility.

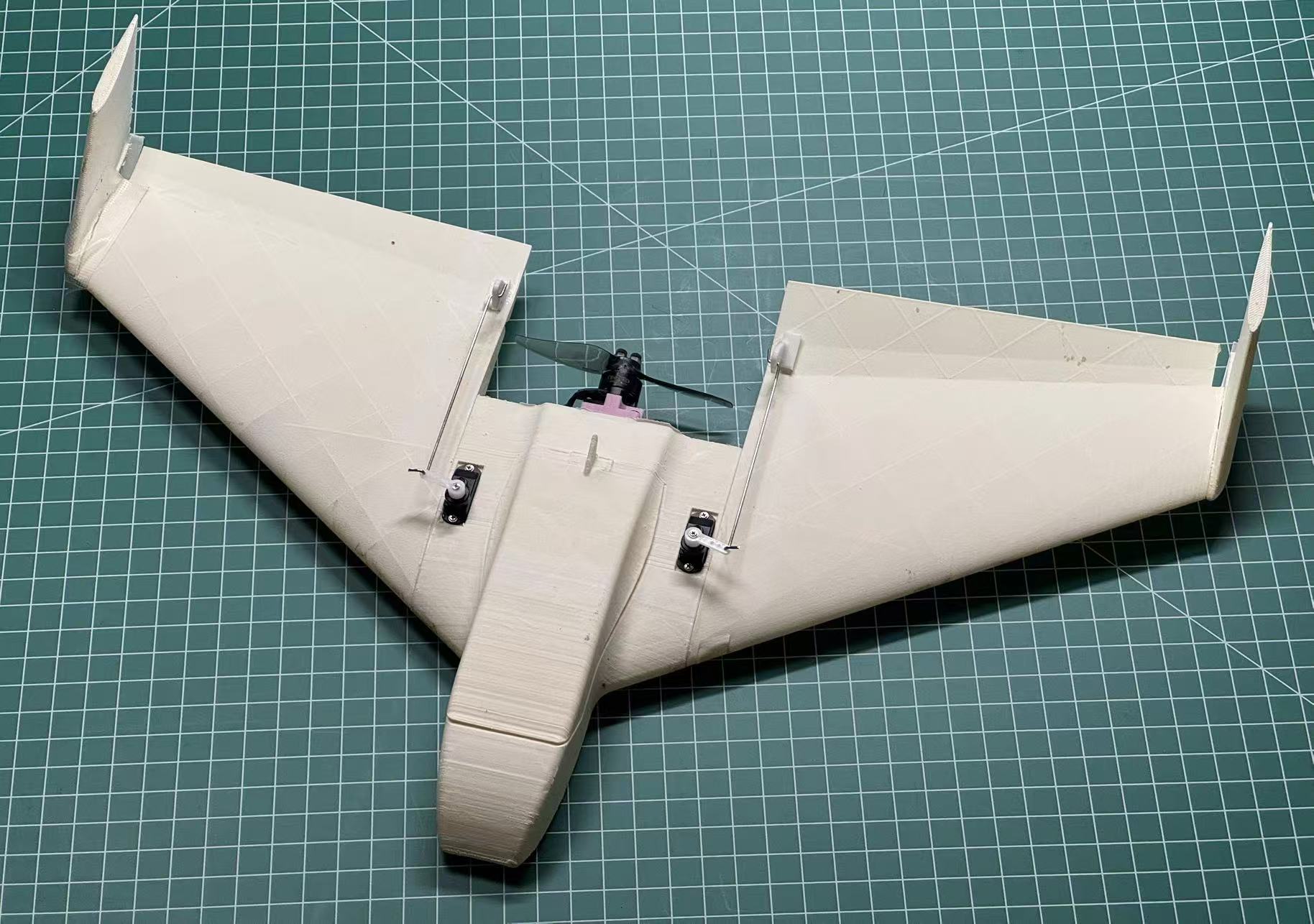

TinyWing

Model Specifications & Performance​

Wingspan: 380 mm
Wing area: 30,000 mm²
Cruise speed: 25 km/h
Typical take-off weight: 100 g
Maximum pusher propeller diameter: 3 inches
Motor: 1104 7500 KV

Aerodynamic Properties​

  • Root chord:** 140 mm
  • Tip chord:** 60 mm
  • Average chord:** 100 mm
  • Incidence:** 0°
  • Aspect ratio:** 3.8
  • Max L/D:** 8.0
  • Leading edge sweep:** 55.6°
  • Trailing edge sweep:** 81.0°
  • Airfoil:** MH60

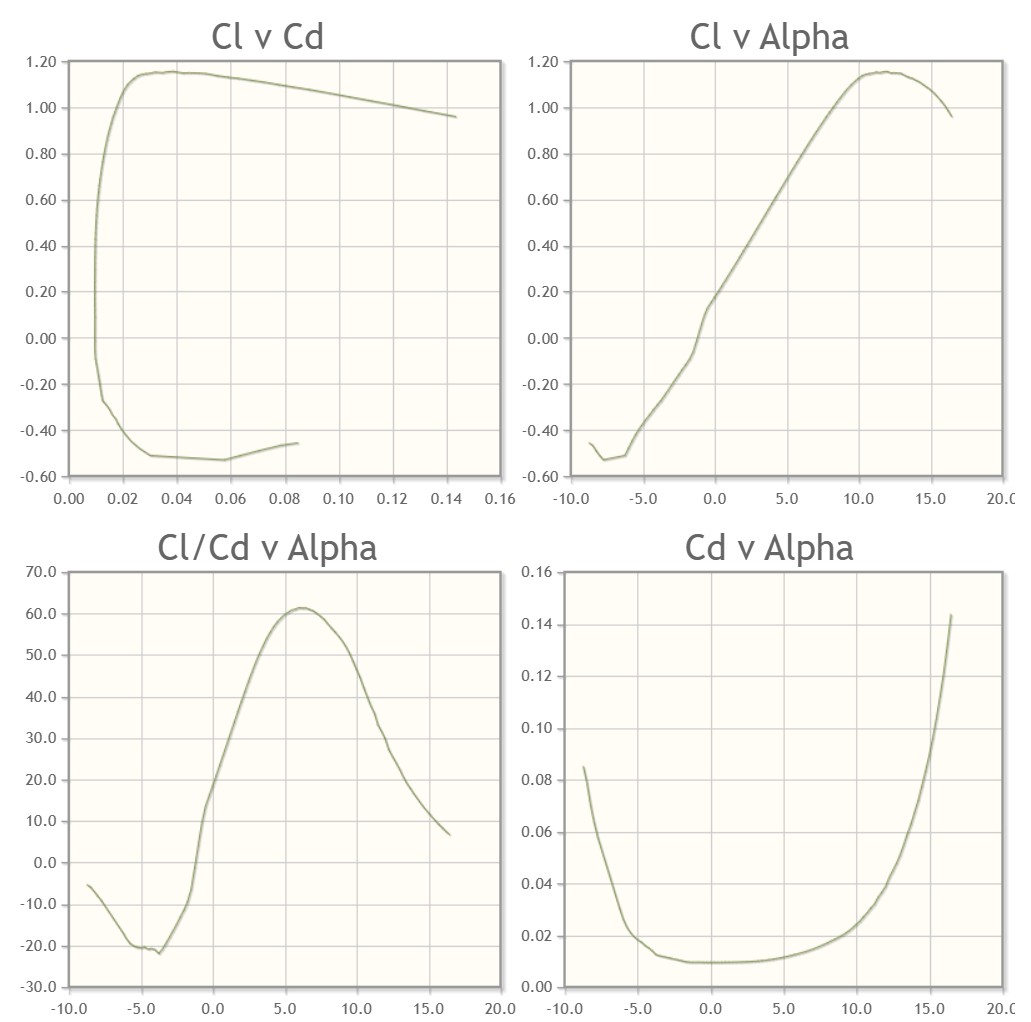

    • Plots @ Reynols = 200,000
    • Plots

Required Build Materials​

  • ELRS receiver
  • FlyingRC F4Wing Mini
  • Little Bee 20A ESC
  • 1104 7500 KV motor
  • 2 g Servo * 2
  • 2S 300 mAh LiPo
  • HQ 3018 propeller

Miscellaneous​

  • Lightweight PLA
  • 180 × 180 × 180 A1 mini printer
  • Control horns and motor mount: PETG
  • M2 threaded rods
  • 5 × 2 mm magnets ×4
    • 3 mm × 100 mm carbon tube
  • 2 * 6 mm screw *4
  • 1.7* 6 mm screw *4
  • 2 *8 mm screw *4
  • 1 mm pushrod

3D Printing​

Material: Lightweight PLA

Strongly recommend reading this wiki before printing LWPLA:
Bambulab rc model pringting settings

Lightweight PLA properties vary between brands, so calibration and test prints are highly recommended.

Typical Printing Settings​

Wing:

  • Temperature: 220–250°C
  • Extrusion ratio: 0.5
  • Spiral vase mode: On
  • Infill: 0%

Body:

  • Temperature: 220–250°C
  • Extrusion ratio: 0.6
  • Spiral vase mode: Off
  • Zero hopping
  • Avoid crossing perimeters during printing
  • Infill: 5% adaptive cubic

Assembly​

  1. Control surfaces

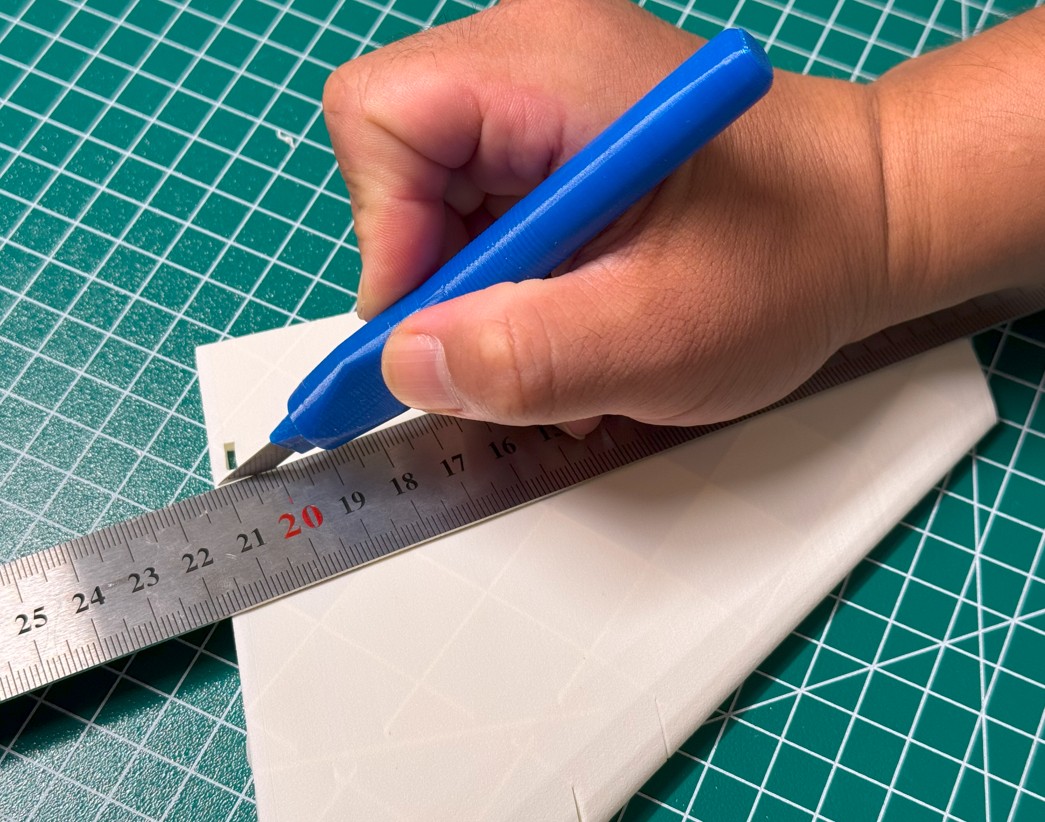

    • Cut out the aileron cutouts along the trailing edge.
      aileron

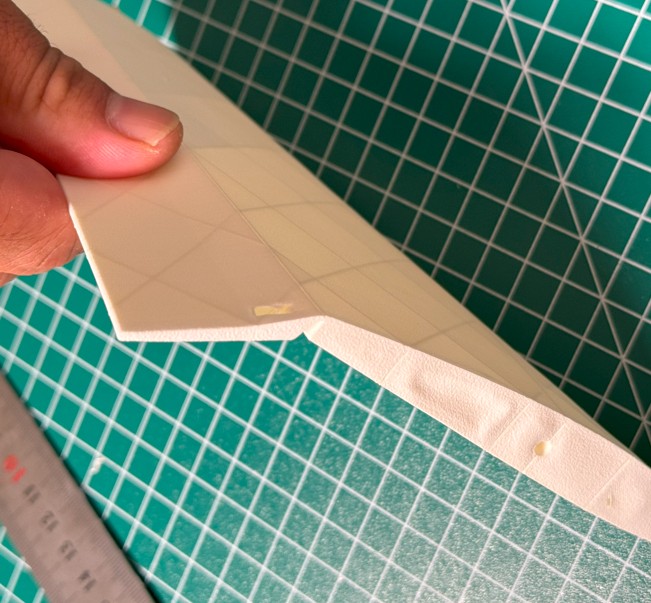

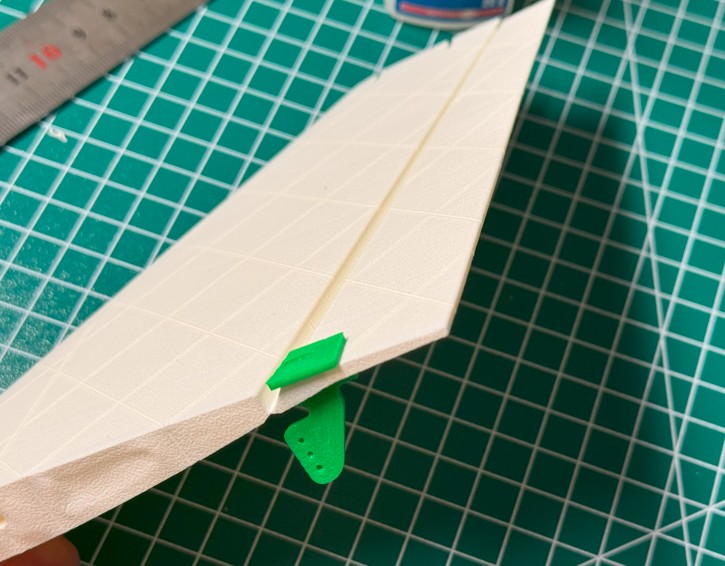

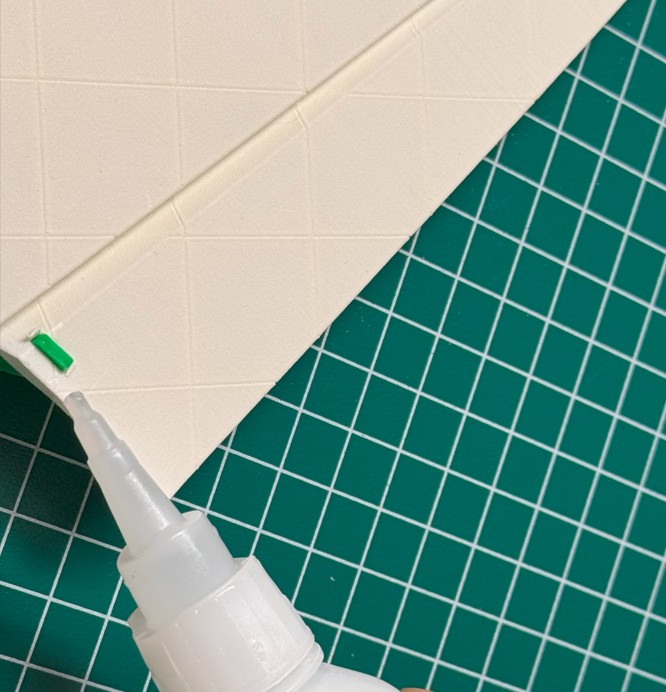

    • Glue servo horn to aileron servo horn servo horn

  2. Wing Tip

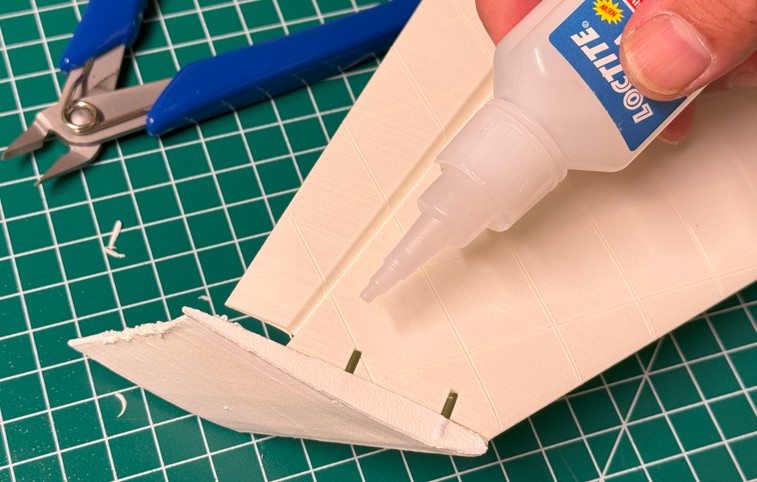

    • Cut 1.75mm * 10mm printing wire glue to tip of wing, and glue wing tip
    • wing tip

  3. Servos and linkages

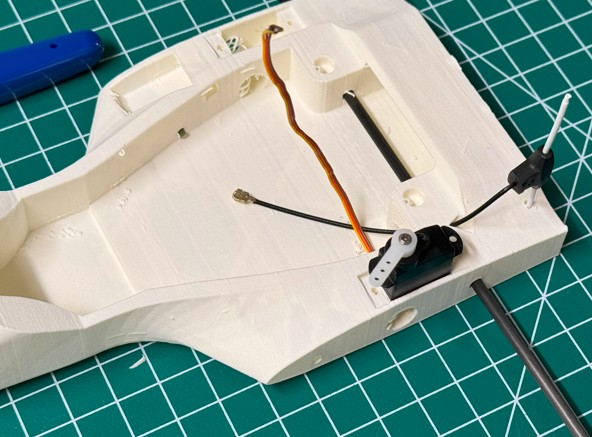

    • Mount the 2 g servos inside the fuselage pockets.
      servo
    • Connect the servo arms to the control horns using steel pushrods. The pushrod is
    • Check for smooth, slop-free movement.
      servo horn

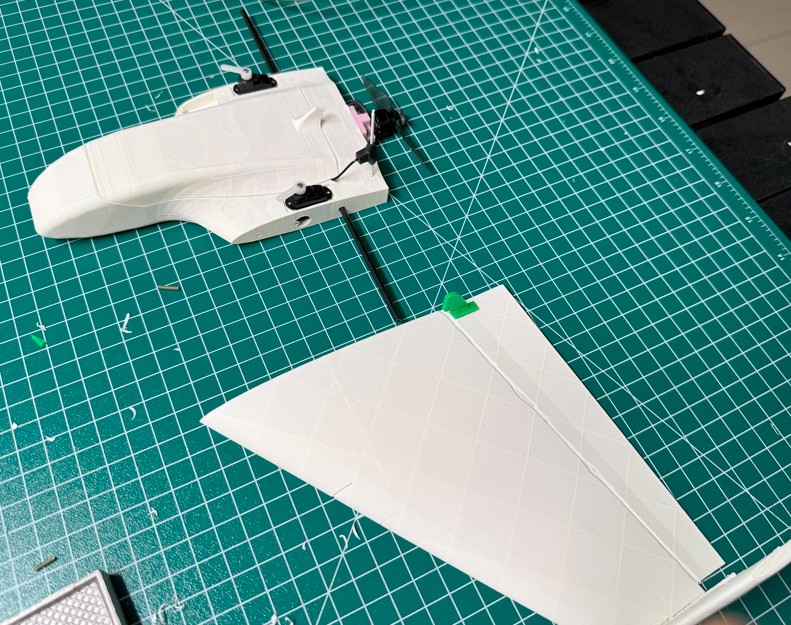

    • Insert 3mm carbon tube to fuselage and connect wing
    • wing

  4. Motor

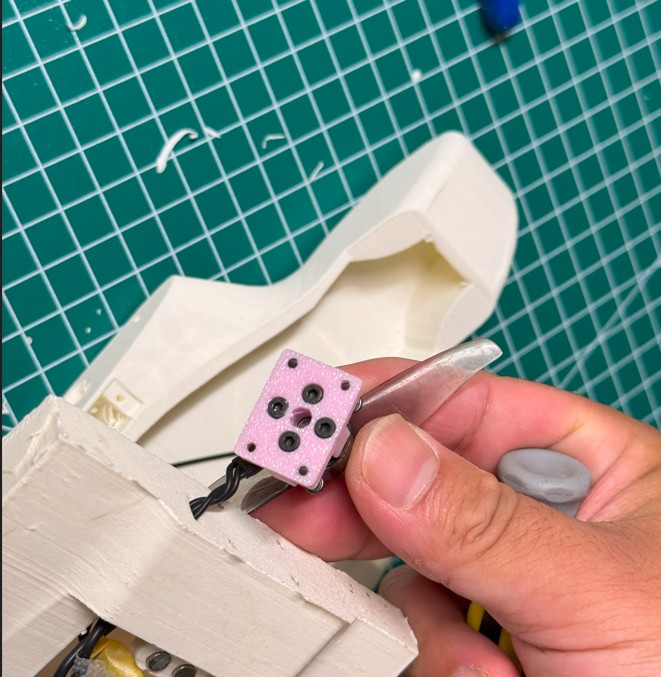

    • Mount the motor to the motor mount and attach it to the fuselage with screws.
      Motor

  5. Canopy

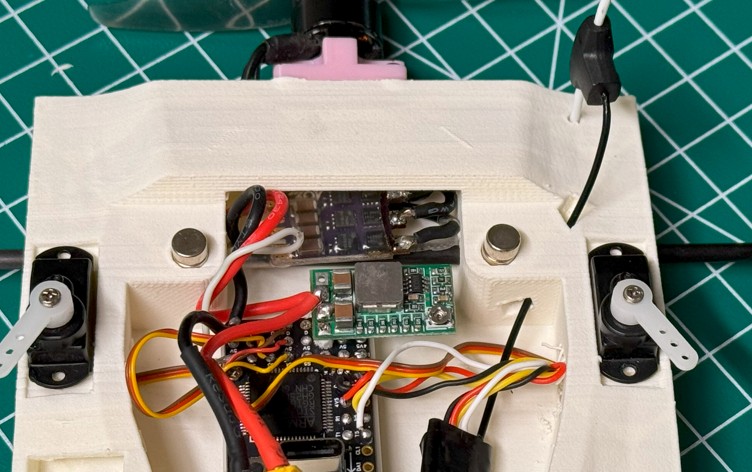

    • Insert 5×3 mm magnets into the canopy and fuselage slots. Drop on CA glue in before insert magnets
    • Ensuring correct polarity.
      magnets
  1. Final checks

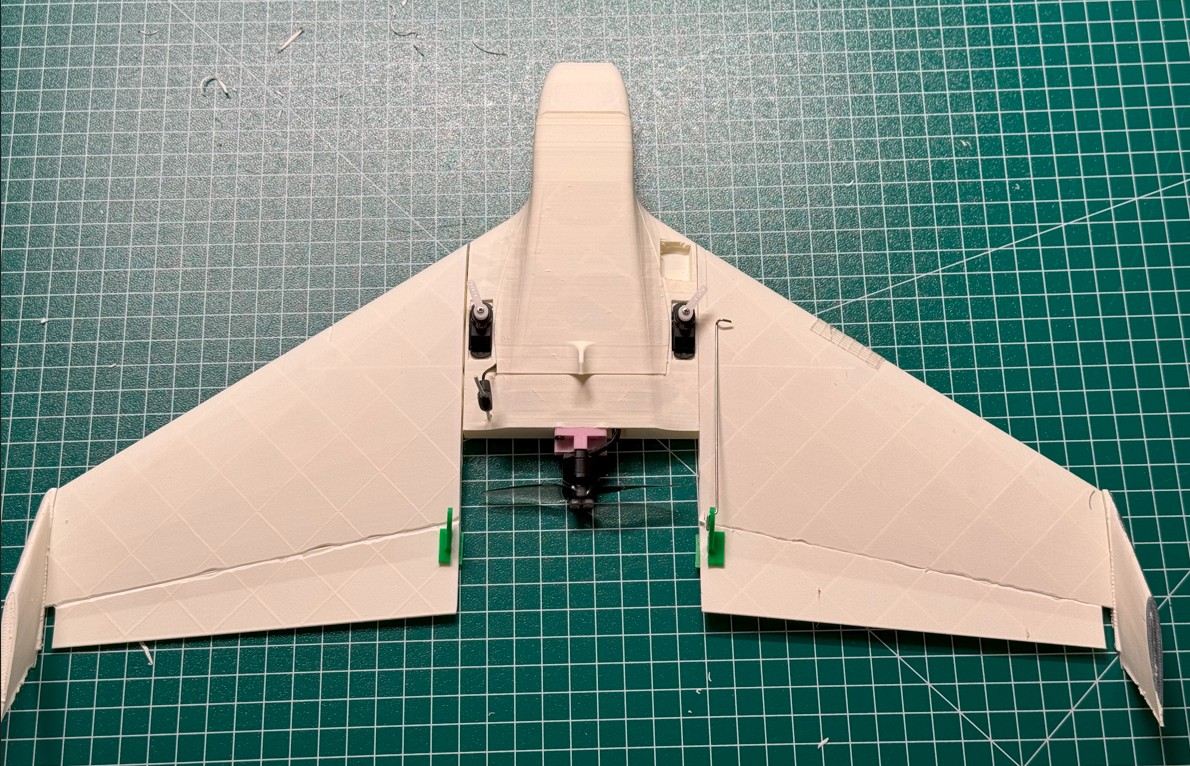

    • Verify CG (use the two dots under the fuselage as reference). For the maiden flight, it’s recommended to keep the CG slightly nose-heavy.
    • Ensure the ailerons move freely and in the correct direction.
  • total

FC setting​

iNav basic setting​

Based on Flying RC F405 mini wing

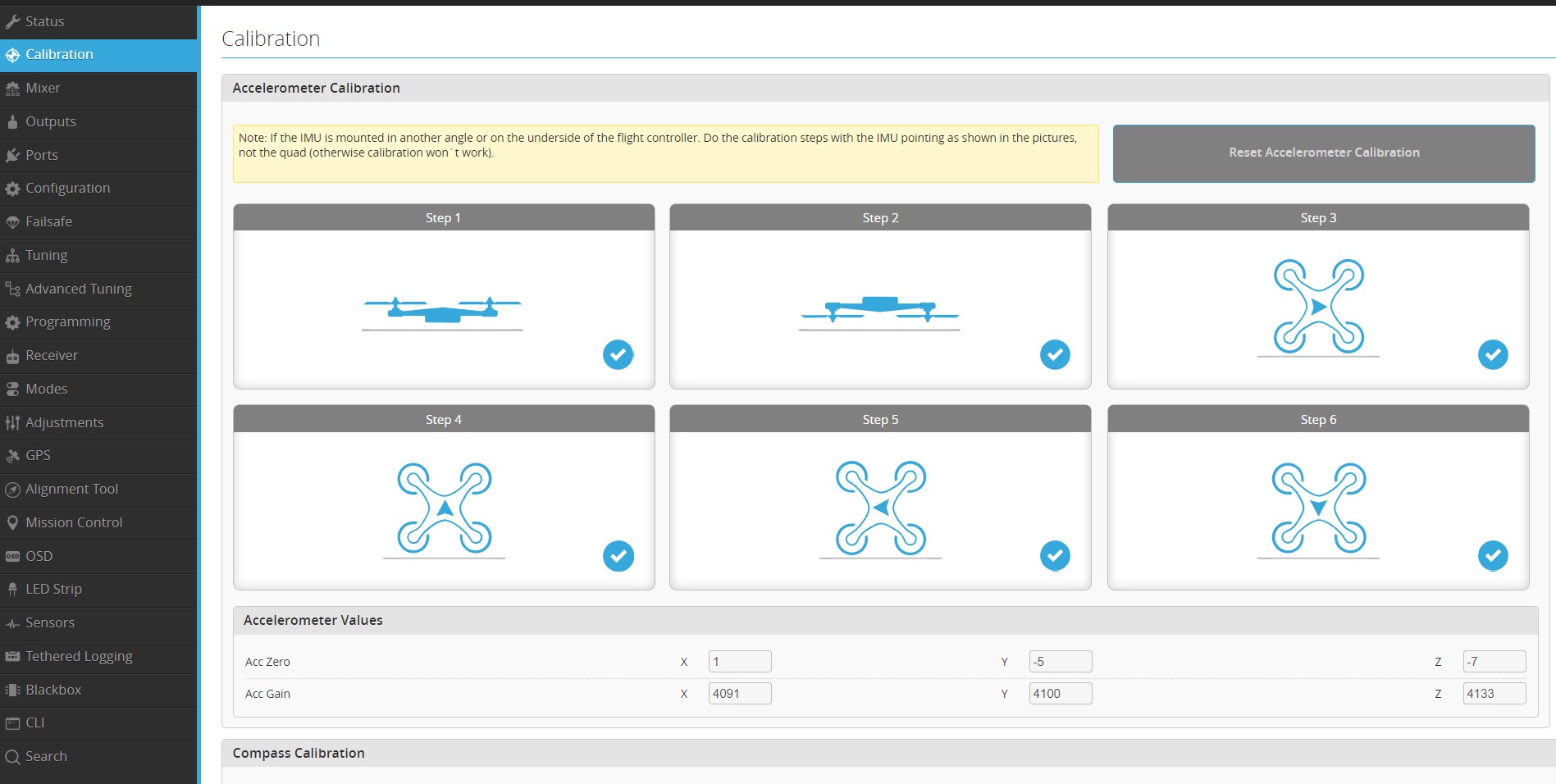

  1. Calibartion gyro gyro cal

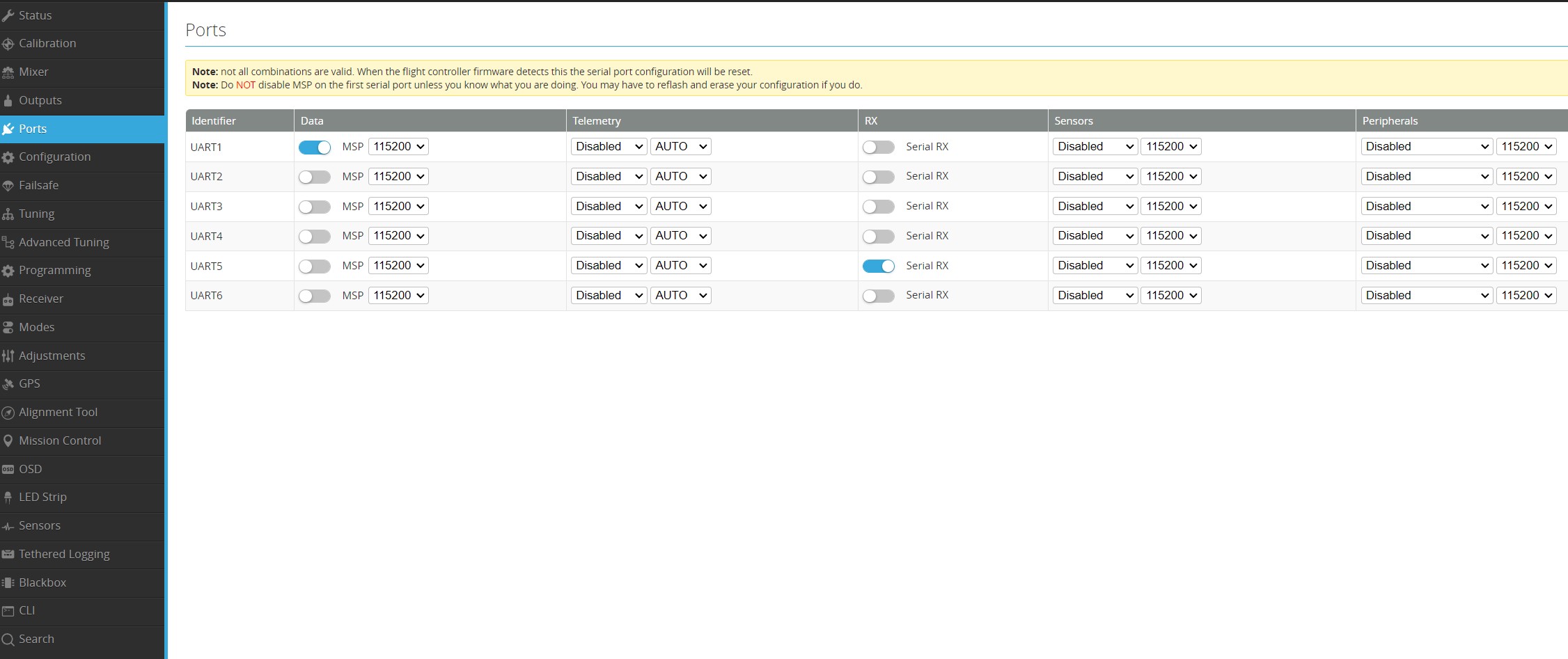

  2. Setting ports ports

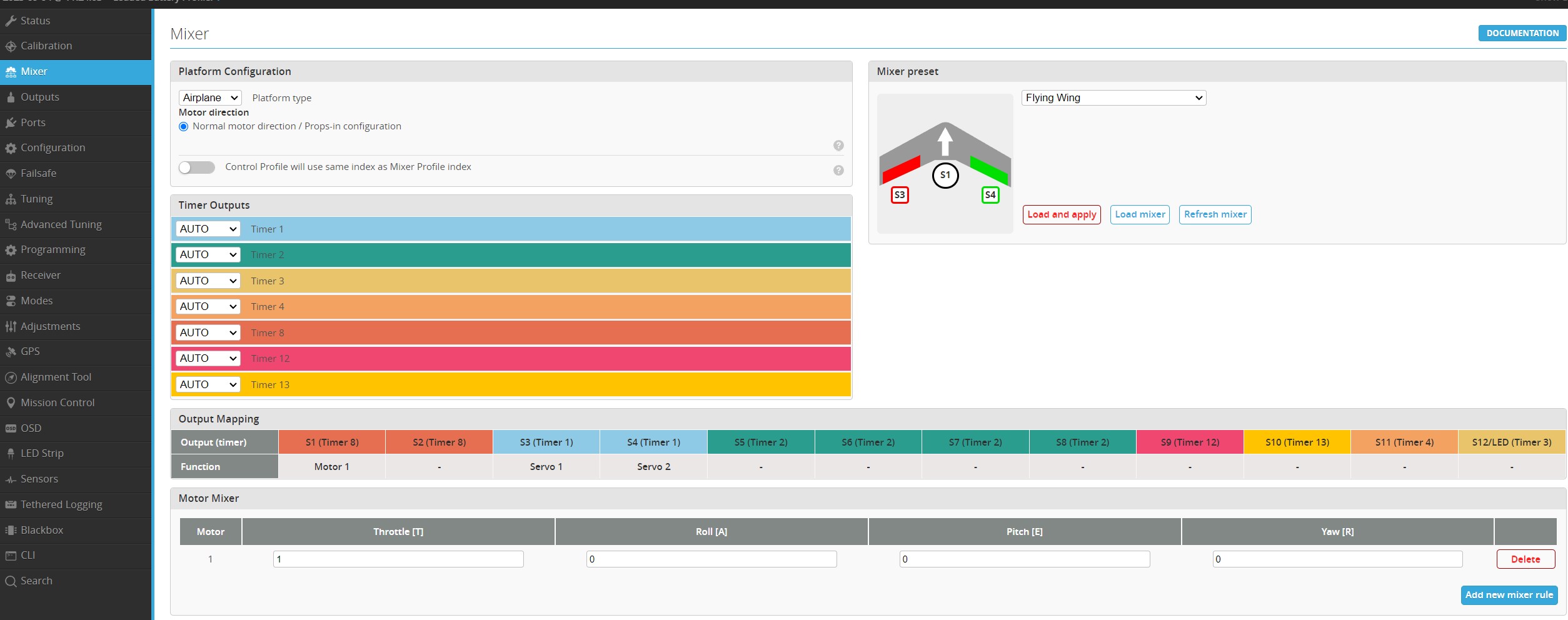

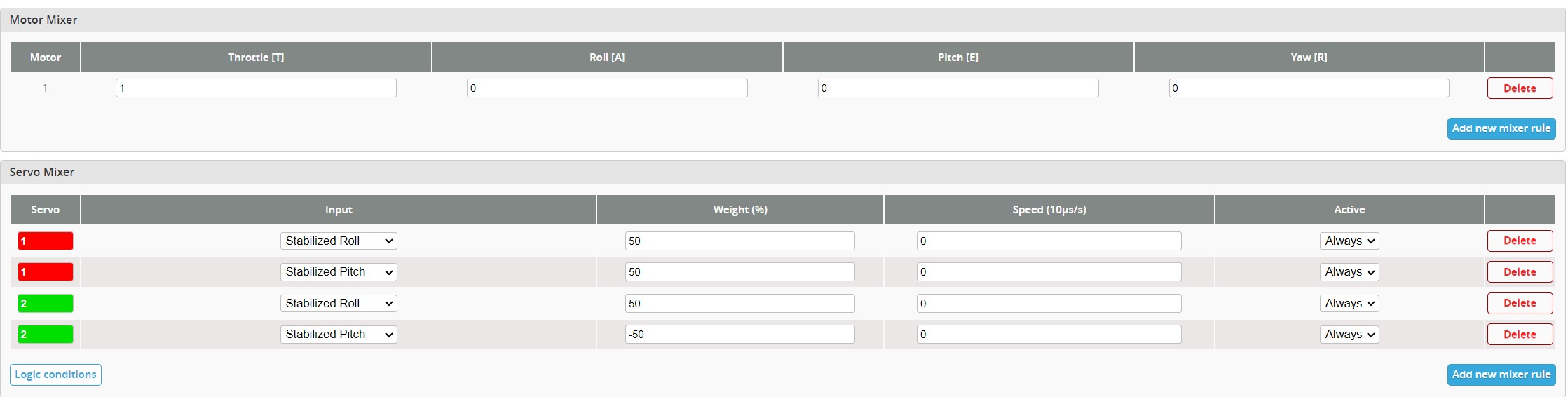

  3. Mix setting Flying wing use aileron mix ports ports

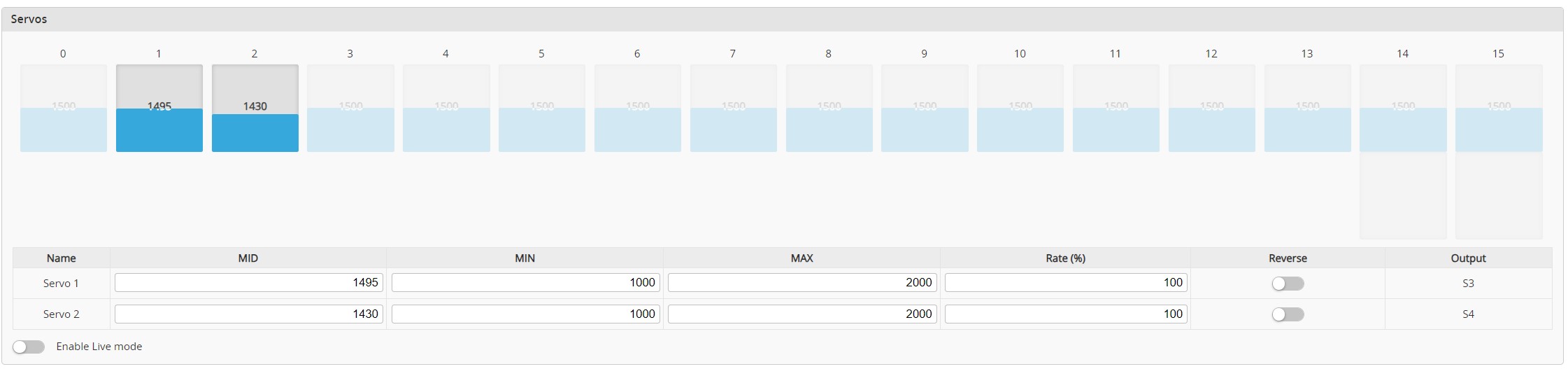

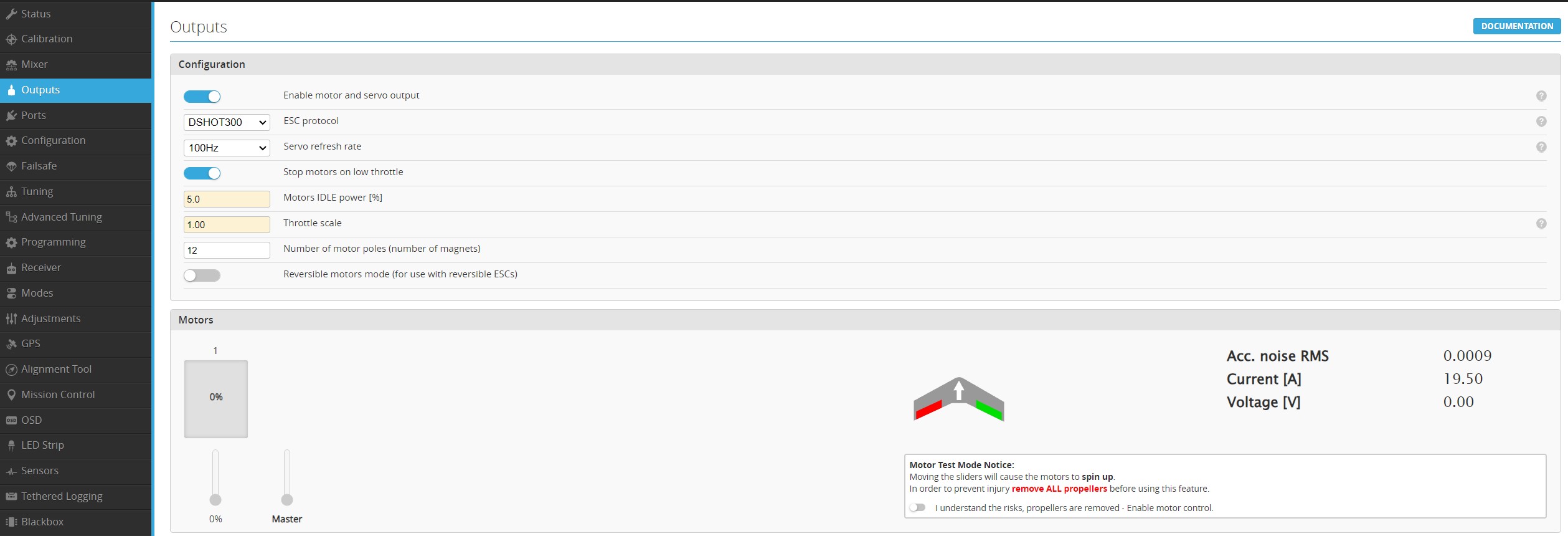

  4. Servo and ESC Enable motor and servo output ports Servo trim by setting MID PWM value

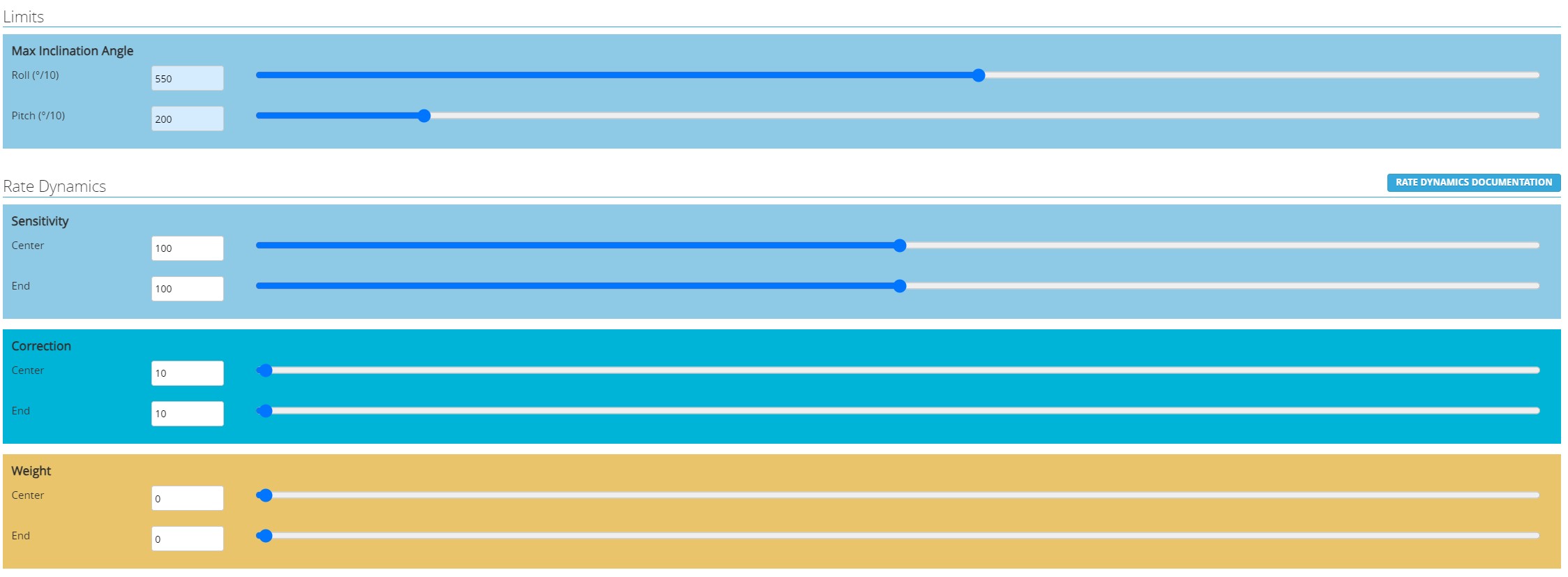

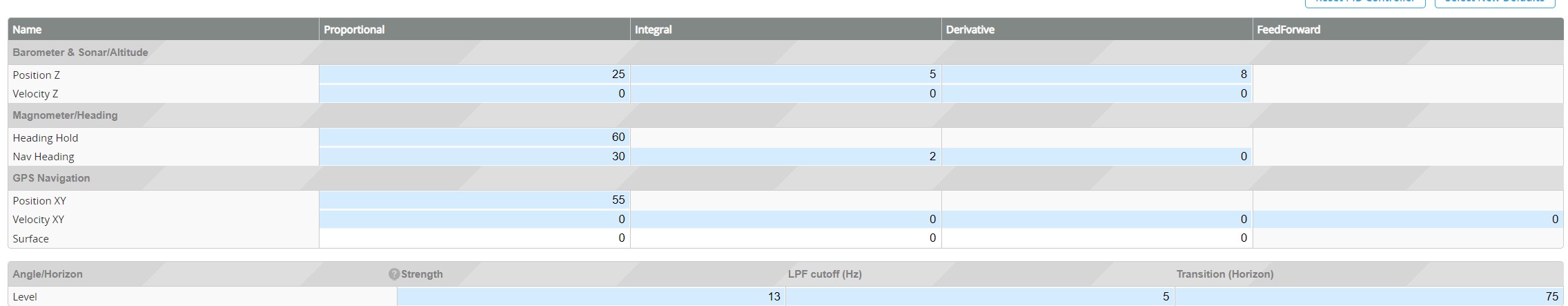

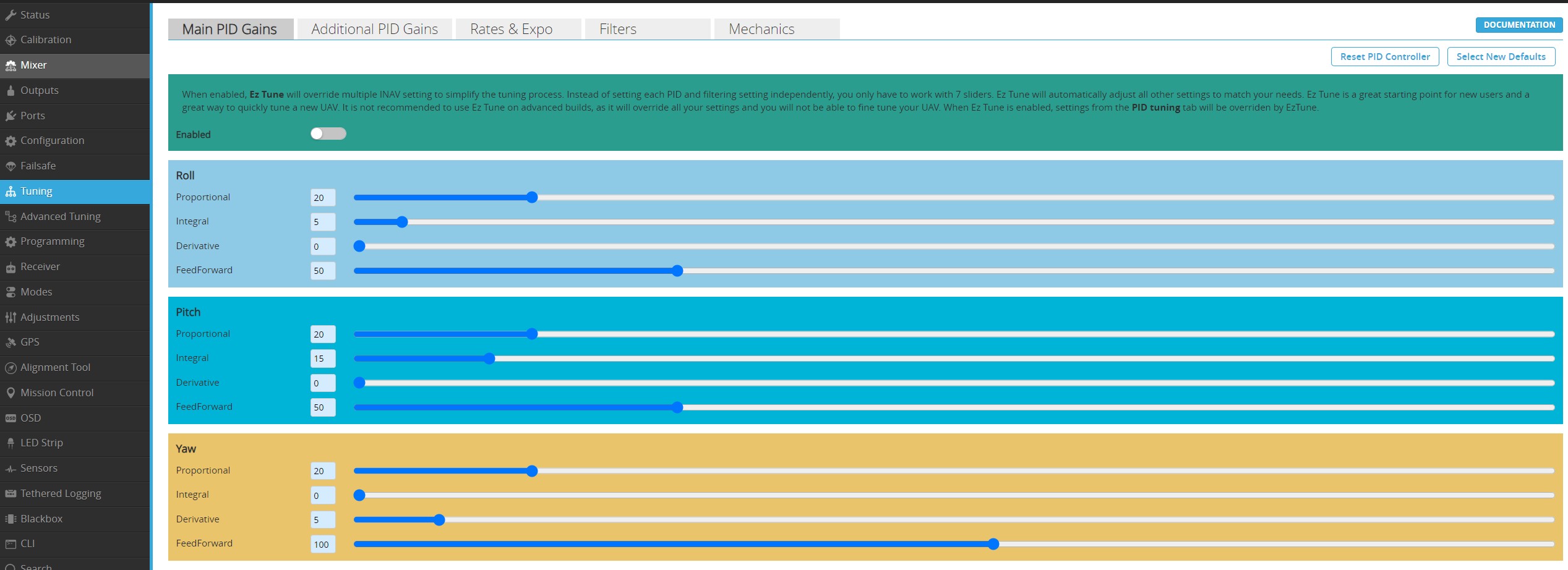

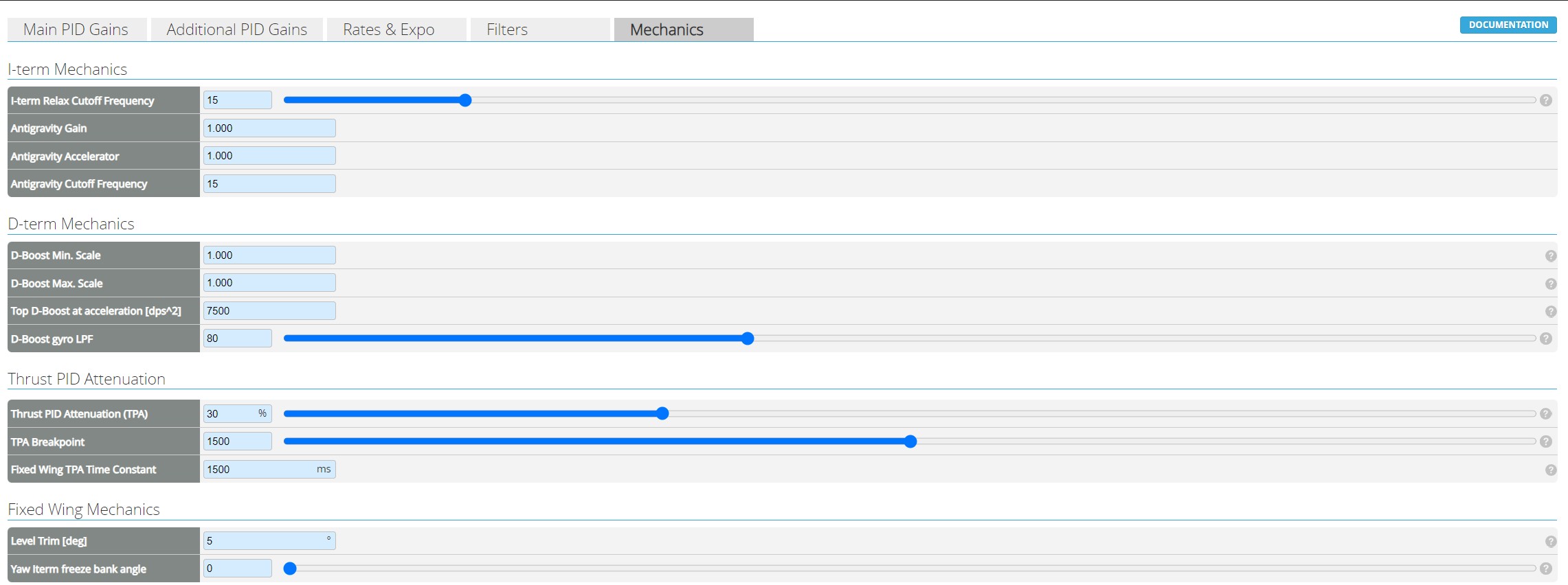

  5. Basic tunning PID: ports

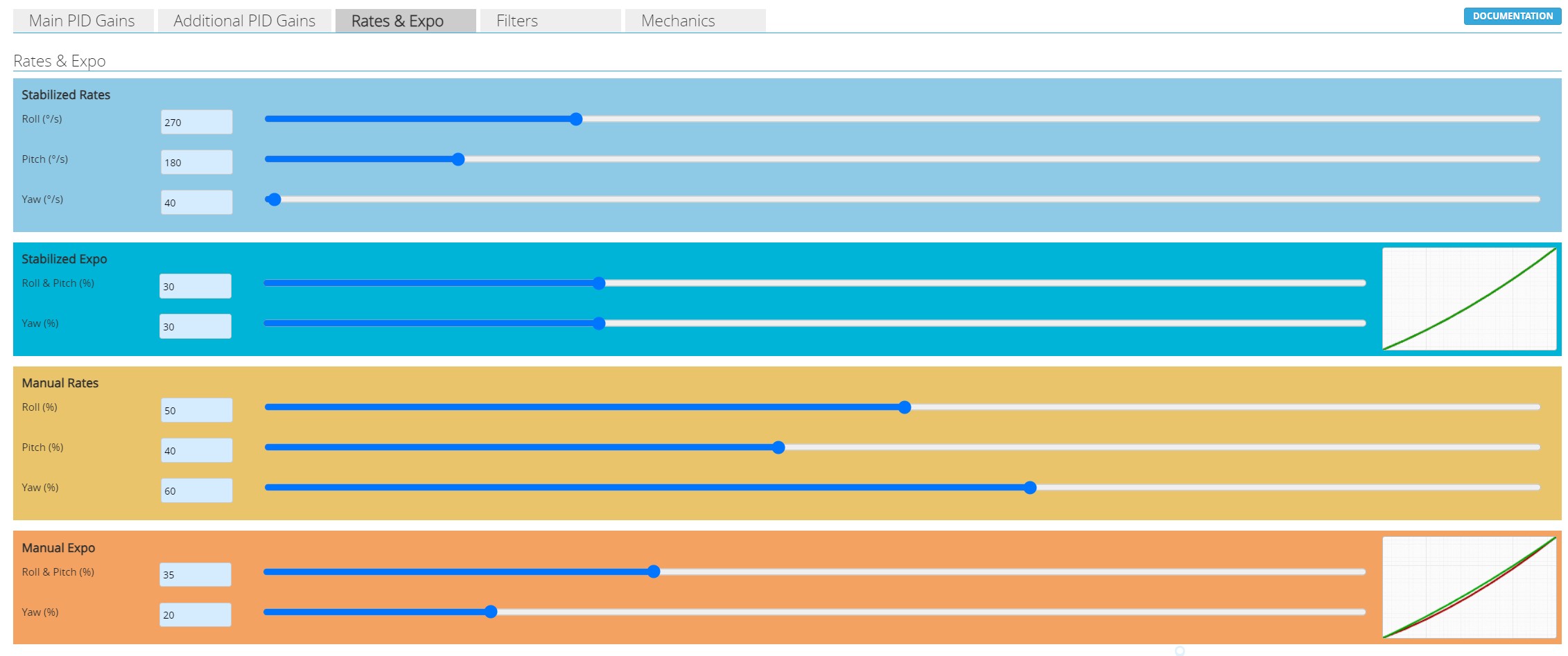

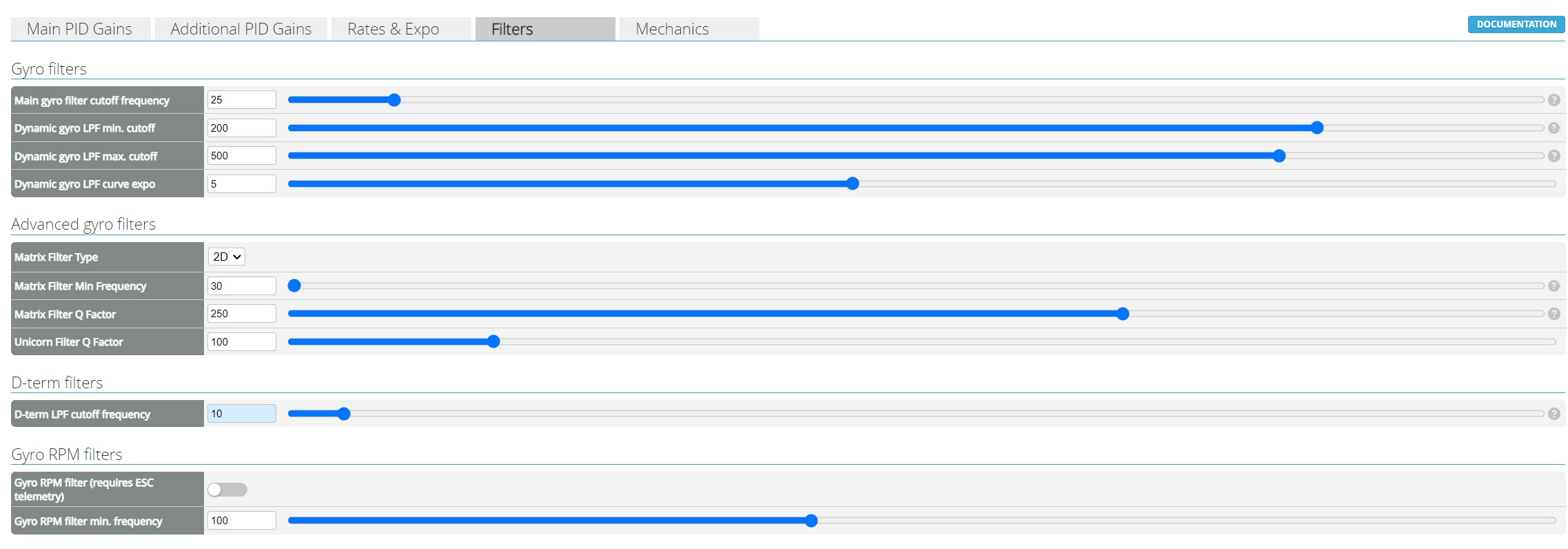

    ports ports Rates: ports ports Filters ports ports

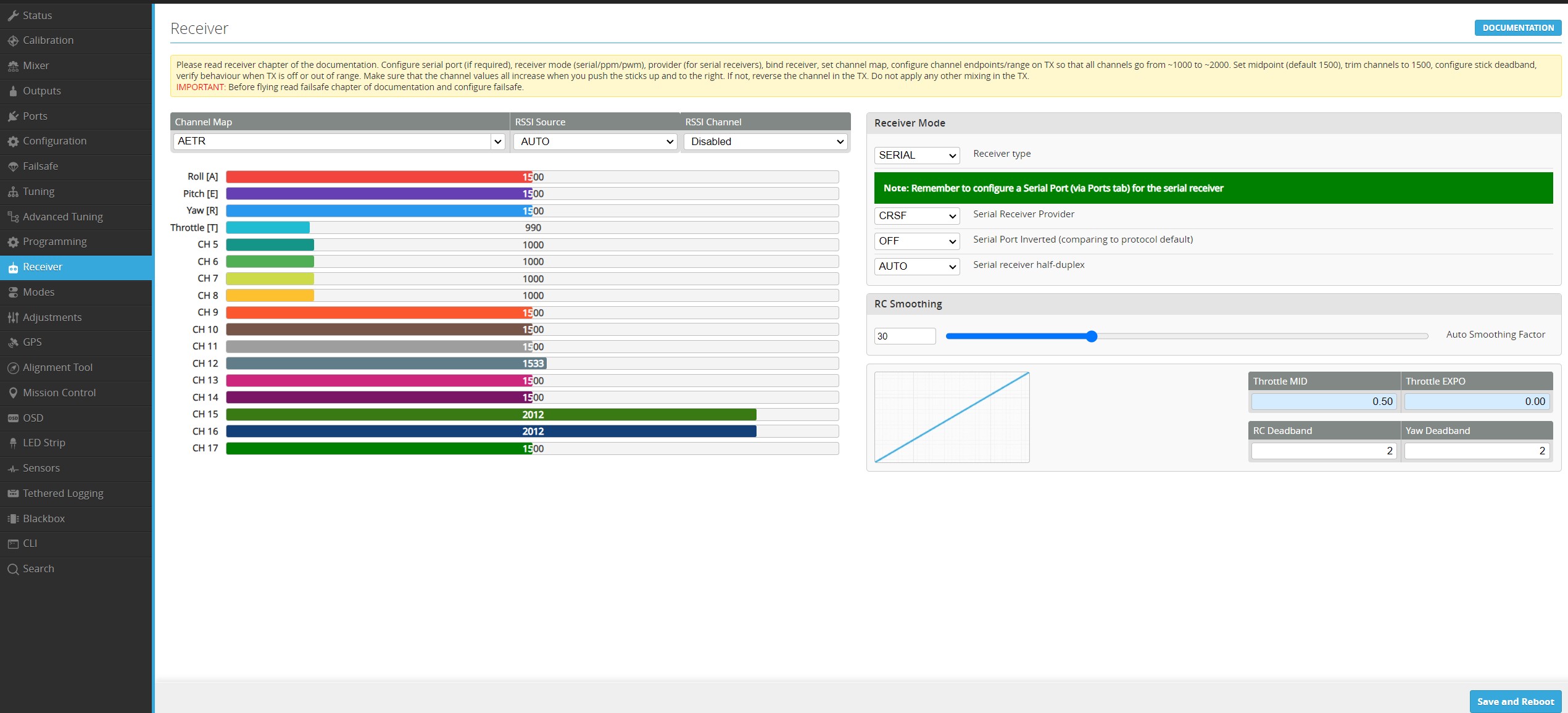

  6. Receiver I use ELRS receiver, so CRSF protocal is selected ports

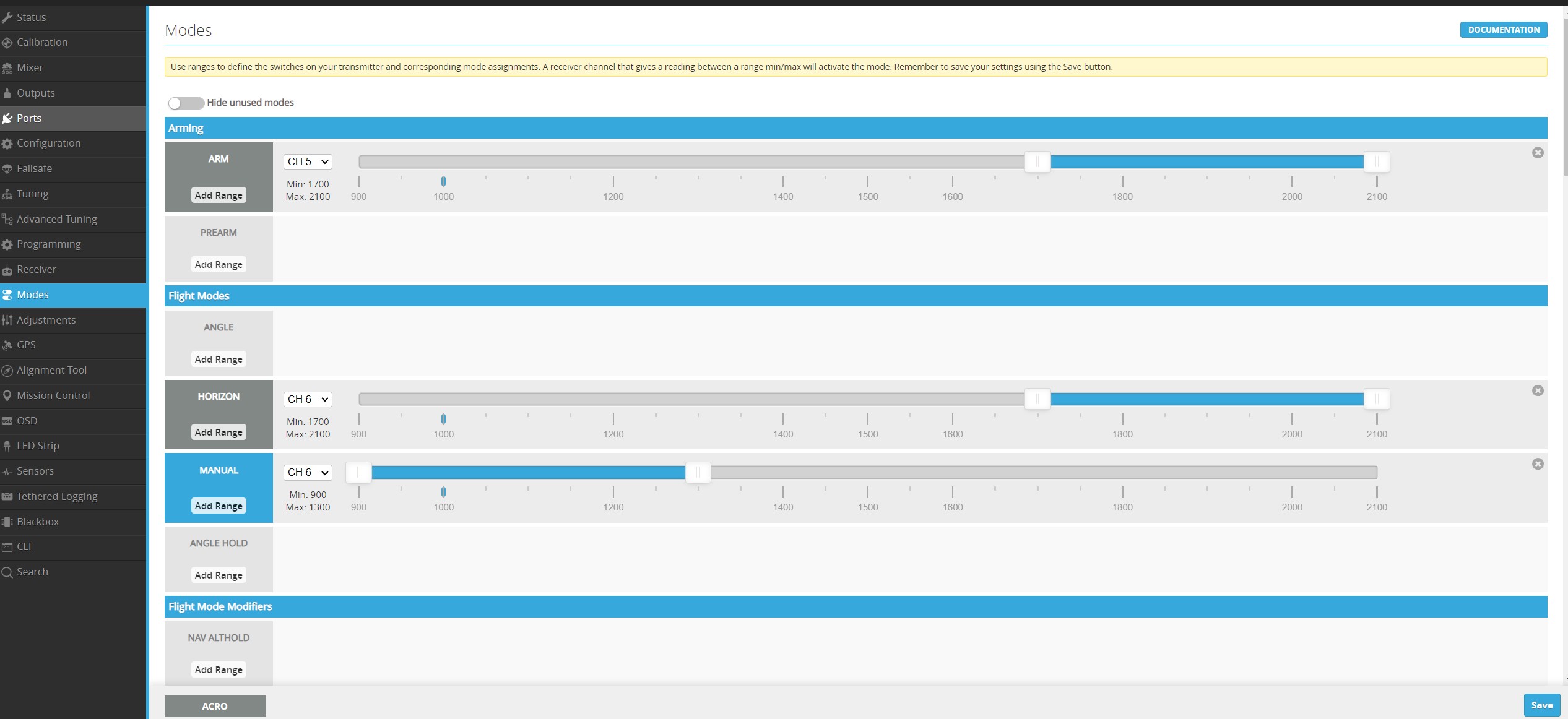

  7. Modes I use HORIZON RATE and Manual mode ports

Enjoy your flight​

Tiny Wing 简介

· 3 min read
Jack Li
Engineer

欢迎来到我们的技术博客。

今天我要介绍一款易于制作且飞行有趣的微型无人机 —— Tiny Wing。

模型信息​

Tiny Wing 是一款可 3D 打印的小型无人机，翼展 380 mm，单电机推式布局。它的名字突出了小巧轻便的特点 —— 全机重量仅 100 g。
气动设计经过优化，兼顾了效率与灵活性。

TinyWing

模型参数与性能​

翼展： 380 mm
翼面积： 30,000 mm²
巡航速度： 25 km/h
典型起飞重量： 100 g
最大螺旋桨直径： 3 英寸
电机： 1104 7500 KV

气动参数​

  • 根弦长：140 mm
  • 翼尖弦长：60 mm
  • 平均弦长：100 mm
  • 安装角：0°
  • 展弦比：3.8
  • 最大升阻比 (L/D)：8.0
  • 前缘后掠角：55.6°
  • 后缘后掠角：81.0°
  • 翼型： MH60
    • 雷诺数 = 200,000 下的极线
    • Plots

所需材料​

推荐电子设备​

  • ELRS 接收机
  • FlyingRC F4Wing Mini 飞控
  • Little Bee 20A 电调
  • 1104 7500 KV 无刷电机
  • 2 g 舵机 × 2
  • 2S 300 mAh 锂电池
  • HQ 3018 螺旋桨

其他材料​

  • 轻量 PLA
  • 180 × 180 × 180 A1 mini 打印机
  • 舵角与电机座：PETG
  • M2 螺纹杆
  • 5 × 2 mm 磁铁 × 4
  • 3 mm × 100 mm 碳管
  • 2 × 6 mm 螺丝 × 4
  • 1.7 × 6 mm 螺丝 × 4
  • 2 × 8 mm 螺丝 × 4
  • 1 mm 推杆

3D 打印​

材料： 轻量 PLA

在打印 LWPLA 之前，强烈建议阅读此 Wiki：
Bambulab RC 模型打印参数

不同品牌的 LWPLA 性能差异很大，建议先做校准与测试打印。

典型打印参数​

机翼：

  • 温度：220–250°C
  • 挤出比：0.5
  • 螺旋花瓶模式：开启
  • 填充率：0%

机身：

  • 温度：220–250°C
  • 挤出比：0.6
  • 螺旋花瓶模式：关闭
  • 零跳跃
  • 避免跨越外壁打印
  • 填充率：5% 自适应立方体

装配步骤​

  1. 操纵面

    • 沿着后缘切割 副翼槽。
      aileron
    • 将舵角粘在副翼上。
      servo horn
      servo horn

  2. 翼尖

    • 将 1.75 mm × 10 mm 打印丝粘到翼尖边缘，再粘合翼尖。
      wing tip

  3. 舵机与连杆

    • 将 2 g 舵机 安装在机身舱位内。
      servo
    • 用 钢丝推杆 将 舵机臂 与 舵角 连接。
    • 确保运动平顺、无间隙。
      servo horn
    • 在机身中插入 3 mm 碳管并连接机翼。
      wing

  4. 电机

    • 将电机固定到电机座，并用螺丝安装到机身。
      Motor

  5. 舱盖

    • 将 5×3 mm 磁铁 插入舱盖与机身槽位，在插入前滴入少量 CA 胶。
    • 确保磁铁极性正确。
      magnets

  6. 最终检查

    • 检查 重心 (CG)（参考机身下方的两个点）。首次试飞建议重心略微偏前（头重）。
    • 确认副翼运动灵活，方向正确。
      total

祝你飞行愉快！ 🚀​
